Schedule 40 Pipe Die for 302 "One-Shot" Tube and Pipe Bender (NPS 3/8, 3" CLR)


  • Nominal Pipe Size (Diameter Nominal): NPS 3/8 (DN 10)
  • Outside Diameter of Pipe: 0.675" (17.1 mm)
  • Inside Diameter of Pipe: 0.493" (12.5 mm)
  • Nominal Wall Thickness of Pipe: 0.091" (2.3 mm)*
  • Centerline Radius: 3" (76.2 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

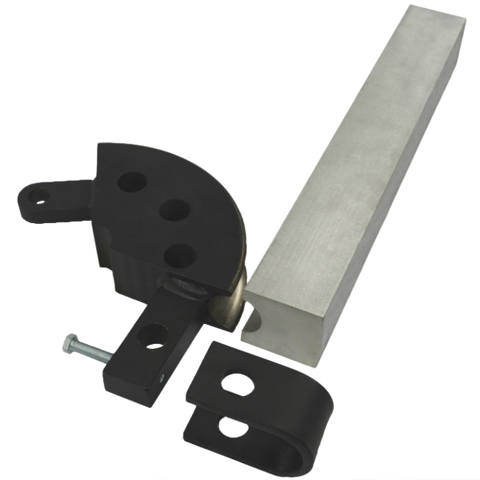

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
  • Sale
  • $ 255.02


  • Nominal Pipe Size (Diameter Nominal): NPS 3/8 (DN 10)
  • Outside Diameter of Pipe: 0.675" (17.1 mm)
  • Inside Diameter of Pipe: 0.493" (12.5 mm)
  • Nominal Wall Thickness of Pipe: 0.091" (2.3 mm)*
  • Centerline Radius: 3" (76.2 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
