Schedule 40 Pipe Die for 302 "One-Shot" Tube and Pipe Bender (NPS 3/8, 3-1/2" CLR)


  • Nominal Pipe Size (Diameter Nominal): NPS 3/8 (DN 10)
  • Outside Diameter of Pipe: 0.675" (17.1 mm)
  • Inside Diameter of Pipe: 0.493" (12.5 mm)
  • Nominal Wall Thickness of Pipe: 0.091" (2.3 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

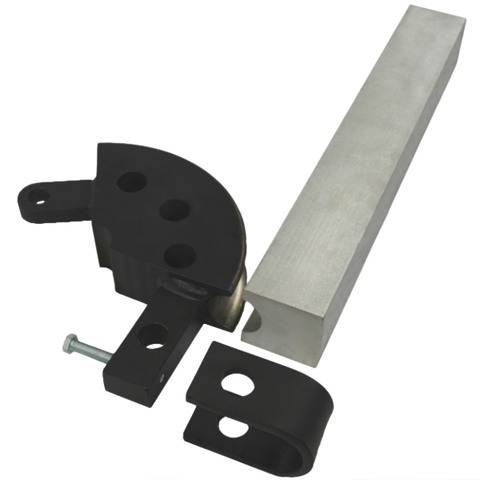

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
  • Sale
  • $ 384.99
