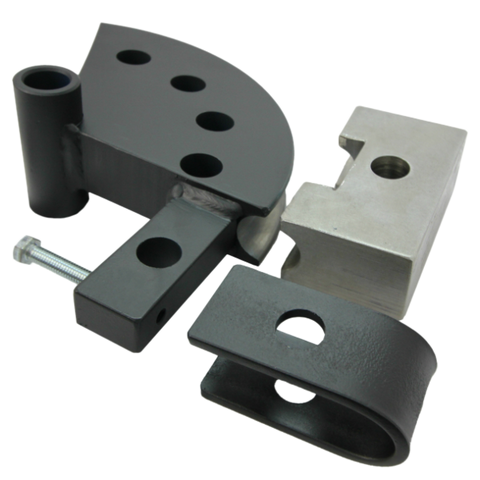

90 Degree Schedule 40 Pipe Die for 105 Brute Tube and Pipe Bender (NPS 3/4, 3-1/2" CLR)


  • Nominal Pipe Size (Diameter Nominal): NPS 3/4 (DN 20)
  • Outside Diameter of Pipe: 1.050" (26.7 mm)
  • Inside Diameter of Pipe: 0.824" (20.9 mm)
  • Nominal Wall Thickness of Pipe: 0.113" (2.9 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
  • Sale
  • $ 319.99

  • Nominal Pipe Size (Diameter Nominal): NPS 3/4 (DN 20)
  • Outside Diameter of Pipe: 1.050" (26.7 mm)
  • Inside Diameter of Pipe: 0.824" (20.9 mm)
  • Nominal Wall Thickness of Pipe: 0.113" (2.9 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
