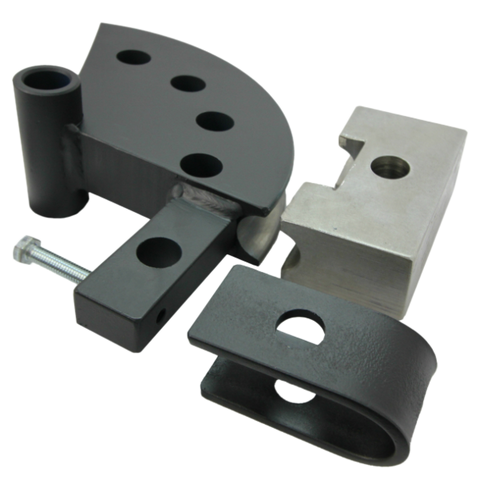

90 Degree Schedule 40 Pipe Die for 105 Brute Tube and Pipe Bender (NPS 2, 7" CLR)
- Nominal Pipe Size (Diameter Nominal): NPS 2 (DN 50)
- Outside Diameter of Pipe: 2.375" (60.3 mm)
- Inside Diameter of Pipe: 2.067" (52.5 mm)
- Nominal Wall Thickness of Pipe: 0.154" (2.2 mm)*
- Centerline Radius: 7" (177.8 mm)
- Maximum Degree of Bend: 90, after springback
- *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
- Steel Main Die
- Steel Backing Block
- Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
