90 Degree Schedule 40 Pipe Die for 105 Brute Tube and Pipe Bender (NPS 1/4, 3-1/2" CLR)


  • Nominal Pipe Size (Diameter Nominal): NPS 1/4 (DN 8)
  • Outside Diameter of Pipe: 0.540" (13.7 mm)
  • Inside Diameter of Pipe: 0.364" (9.2 mm)
  • Nominal Wall Thickness of Pipe: 0.088" (2.2 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

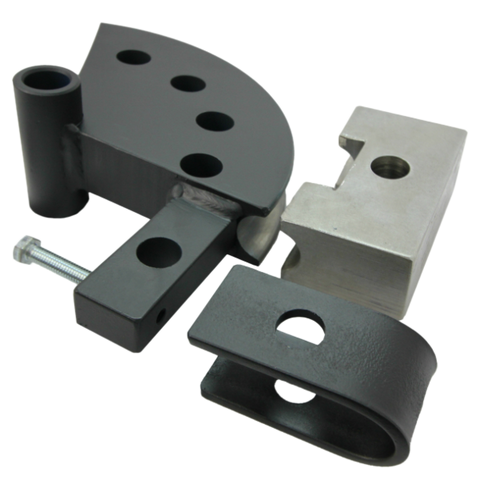

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
