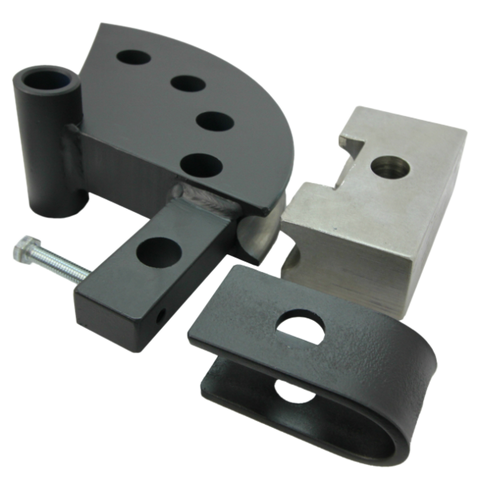

90 Degree Schedule 40 Pipe Die for 105 Brute Tube and Pipe Bender (NPS 1/2, 4" CLR)
- Nominal Pipe Size (Diameter Nominal): NPS 1/2 (DN 15)
- Outside Diameter of Pipe: 0.840" (21.3 mm)
- Inside Diameter of Pipe: 0.622" (15.8 mm)
- Nominal Wall Thickness of Pipe: 0.109" (2.8 mm)*
- Centerline Radius: 4" (101.6 mm)
- Maximum Degree of Bend: 90, after springback
- *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
- Steel Main Die
- Steel Backing Block
- Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
