Schedule 40 Pipe Die for 302 "One-Shot" Tube and Pipe Bender (NPS 1/2, 3-1/2" CLR)


  • Nominal Pipe Size (Diameter Nominal): NPS 1/2 (DN 15)
  • Outside Diameter of Pipe: 0.840" (21.3 mm)
  • Inside Diameter of Pipe: 0.622" (15.8 mm)
  • Nominal Wall Thickness of Pipe: 0.109" (2.8 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.

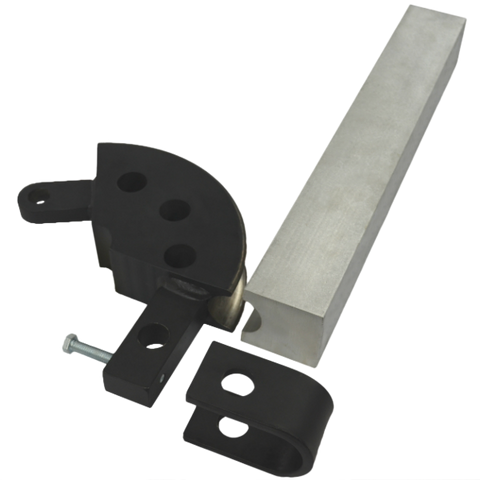

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
  • Sale
  • $ 257.93


  • Nominal Pipe Size (Diameter Nominal): NPS 1/2 (DN 15)
  • Outside Diameter of Pipe: 0.840" (21.3 mm)
  • Inside Diameter of Pipe: 0.622" (15.8 mm)
  • Nominal Wall Thickness of Pipe: 0.109" (2.8 mm)*
  • Centerline Radius: 3-1/2" (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • *Note: Our benders are rated for bending mild steel Schedule 40 Pipe. For other materials or Schedules, contact for details.
  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
