Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (5/8" OD, 3-1/2" CLR)

$ 220.98

Pro-Tools

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (5/8" OD, 3-1/2" CLR)

$ 220.98

Specs

  • Outside Diameter of the Tubing (OD): 5/8" (15.9 mm)
  • Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
  • Minimum Wall Thickness (4130): 0.058” (1.5 mm)
  • Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 3-1/2” (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

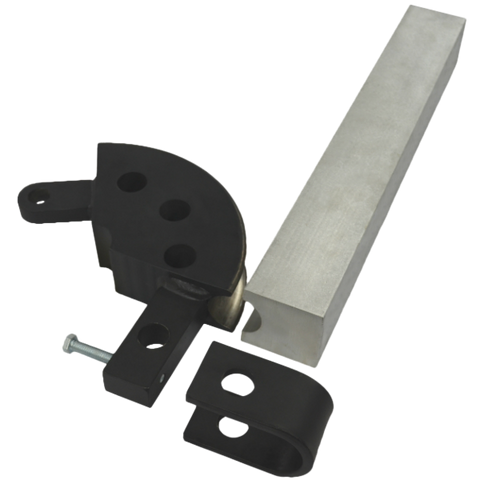

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
