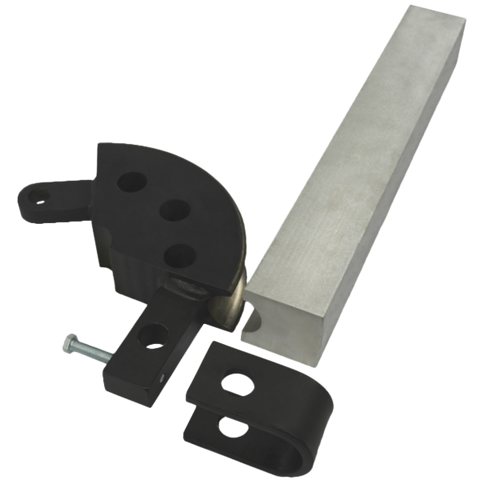

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (3/4" OD, 3-1/2" CLR)

Round Tube Die
jump to features

  • Outside Diameter of the Tubing (OD): 3/4" (19.1 mm)
  • Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
  • Minimum Wall Thickness (4130): 0.058” (1.5 mm)
  • Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 3-1/2” (88.9 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material
  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
