90 Degree Round Tube Die for 105 Standard Duty and Heavy Duty Tube and Pipe Bender (2" OD, 6" CLR)


  • Outside Diameter of the Tubing (OD): 2" (50.8 mm)
  • Minimum Wall Thickness (DOM): 0.095" (2.4 mm)
  • Minimum Wall Thickness (4130): 0.095" (2.4 mm)
  • Minimum Wall Thickness (ERW): 0.109” (2.8 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 6" (152.4 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

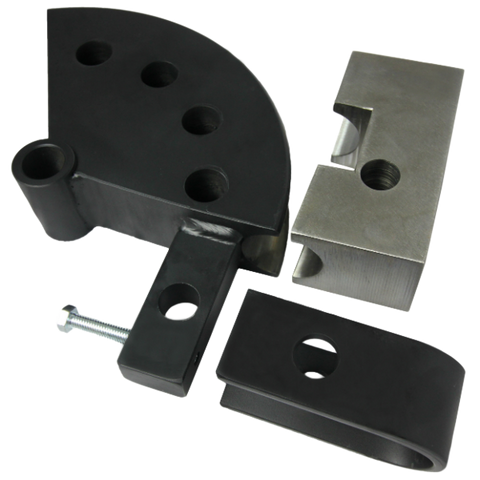

  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
  • Sale
  • $ 464.99

  • Outside Diameter of the Tubing (OD): 2" (50.8 mm)
  • Minimum Wall Thickness (DOM): 0.095" (2.4 mm)
  • Minimum Wall Thickness (4130): 0.095" (2.4 mm)
  • Minimum Wall Thickness (ERW): 0.109” (2.8 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 6" (152.4 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material
  • Steel Main Die
  • Steel Backing Block
  • Steel U-Strap
Lead times vary by product. Many orders can ship out within a few days, but to make sure we offer our highest quality, some items our made-to-order. We never want to lose your business over lead time, so contact us if you need something ASAP.
