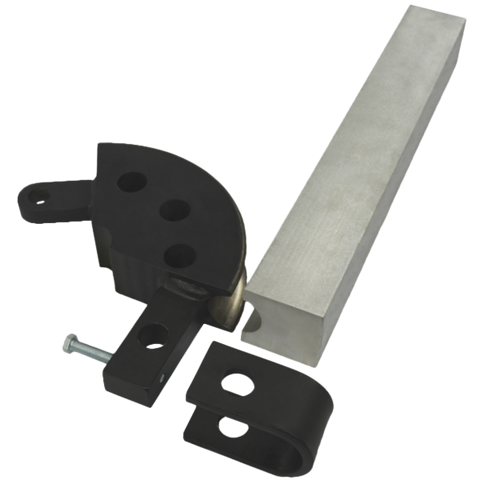

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (2" OD, 6" CLR)

$ 373.11

Pro-Tools

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (2" OD, 6" CLR)

$ 373.11

Specs

  • Outside Diameter of the Tubing (OD): 2" (50.8 mm)
  • Minimum Wall Thickness (DOM): 0.120” (3.0 mm)
  • Minimum Wall Thickness (4130): 0.120” (3.0 mm)
  • Minimum Wall Thickness (ERW): 0.125” (3.2 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 6” (152.4 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
