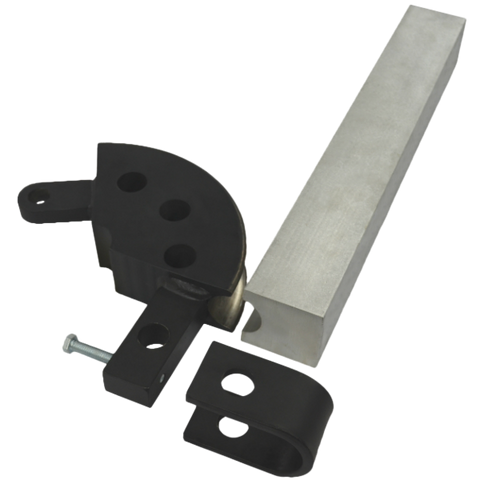

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (1" OD, 4" CLR)

• Outside Diameter of the Tubing (OD): 1" (25.4 mm)
• Minimum Wall Thickness (DOM): 0.058” (1.5 mm)
• Minimum Wall Thickness (4130): 0.058” (1.5 mm)
• Minimum Wall Thickness (ERW): 0.065” (1.7 mm)
• Minimum Wall Thickness (Stainless): Contact for Details
• Minimum Wall Thickness (Aluminum): Contact for Details
• Minimum Wall Thickness (Other): Contact for Details
• Maximum Wall Thickness: 0.134” (3.4 mm)
• Centerline Radius: 4” (101.6 mm)
• Maximum Degree of Bend: 90, after springback
• Maximum Ovality: <10%, depending on the type, grade, and quality of the material

• Steel Main Die
• Aluminum Follow Bar
• Steel U-Strap
