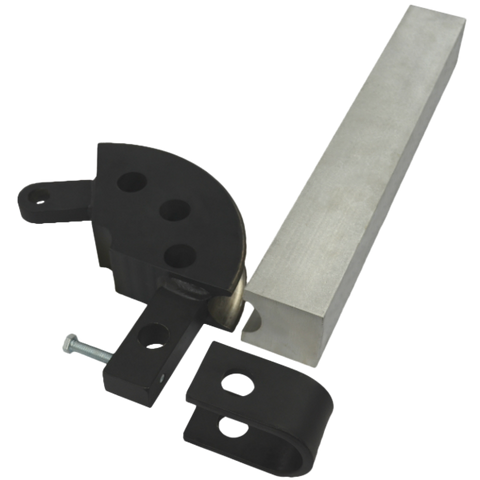

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (1" OD, 3" CLR)


  • Outside Diameter of the Tubing (OD): 1" (25.4 mm)
  • Minimum Wall Thickness (DOM): 0.065” (1.7 mm)
  • Minimum Wall Thickness (4130): 0.065” (1.7 mm)
  • Minimum Wall Thickness (ERW): 0.083” (2.1 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 3” (76.2 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material
  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
  • Sale
  • $ 258.01
