Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (1-3/4" OD, 7" CLR)

$ 365.25

Pro-Tools

Round Tube Die for 302 "One-Shot" Tube and Pipe Bender (1-3/4" OD, 7" CLR)

$ 365.25

Specs

  • Outside Diameter of the Tubing (OD): 1-3/4" (44.5 mm)
  • Minimum Wall Thickness (DOM): 0.083” (2.1 mm)
  • Minimum Wall Thickness (4130): 0.083” (2.1 mm)
  • Minimum Wall Thickness (ERW): 0.095” (2.4 mm)
  • Minimum Wall Thickness (Stainless): Contact for Details
  • Minimum Wall Thickness (Aluminum): Contact for Details
  • Minimum Wall Thickness (Other): Contact for Details
  • Maximum Wall Thickness: 0.134” (3.4 mm)
  • Centerline Radius: 7” (177.8 mm)
  • Maximum Degree of Bend: 90, after springback
  • Maximum Ovality: <10%, depending on the type, grade, and quality of the material

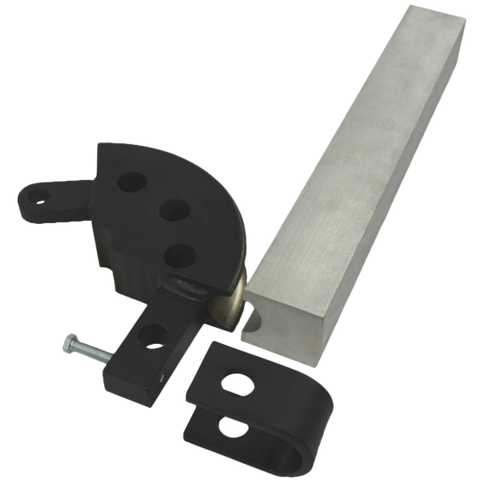

Includes

  • Steel Main Die
  • Aluminum Follow Bar
  • Steel U-Strap
  • U-Strap Pin
  • Tensioning Bolt
